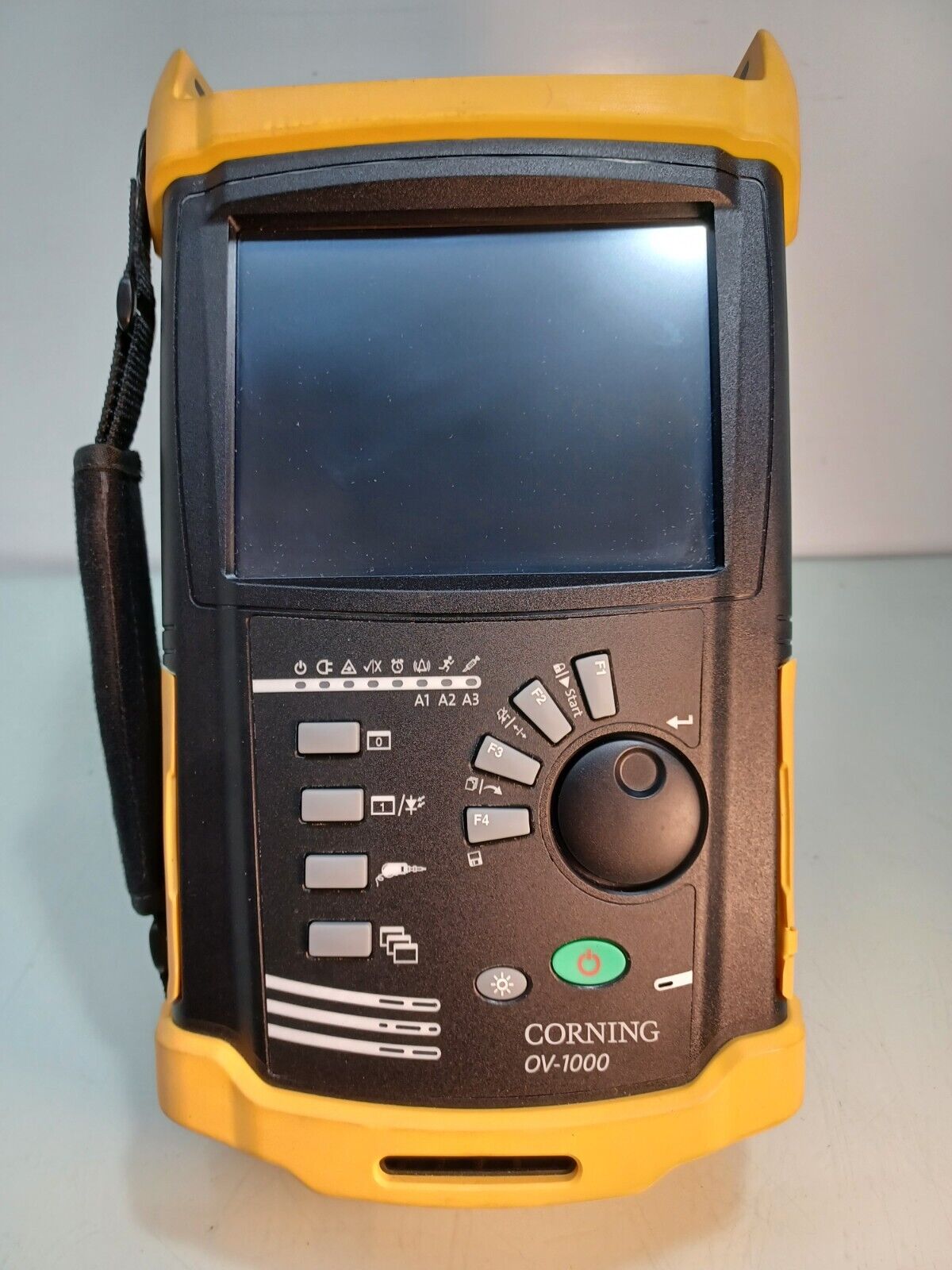

Corning OV-1000 SM/MM Fiber OTDR
Features
- Test and collect data up to four wavelengths by pressing only one button
- Very fast acquisition time
- Fast ready-to-measure boot-up time of 4 seconds
- Simultaneous use of touch screen, short-cut keys and tracking knob for high user convenience
- Maximum 128,000 data points for highest resolution
- Attenuation resolution of 0.001 dB
- Very short event dead zone of just 1 m and 4.5 m attenuation dead zone
- 6.4 ? full VGA touch screen (optional transflective display for crisp viewing in bright sun light available)
- Three test modes (auto, advanced and template) fit best to user skills and applications for maximum measurement convenience
- Possible configurations cover all typical fiber applications from long-haul and WDM to metro networks, FTTx as well as LAN
- Powerful Li-Ion battery provide mains independent operation time of more than 8 hours
- Diverse storage options(in addition to 80 MB built-in flash memory two USB ports and a CompactFlash card slot)
- Internal memory sufficient typically for up to 1,500 traces
- Numerous connection ports for easy connectivity for convenient download and upgrade
- 10 / 100 Mb/s Ethernet Cat.5 RJ-45 network interface
- Rugged and waterproof housing for long life time
- Low weight of only 2.5 kg (mainframe with one module and battery)
Includes:
- Corning OV-1000-MAINF-VPM OTDR MainFrame
- Corning 400-MDSD-EI SM MM Fiber OTDR Module
- Ethernet Cable
- (2) SM SC-SC Fiber Optic Cables
- (2) MM SC-SC Fiber Optic Cables
- Stylus
- (4) Fiber Wipes
- USB PC Interface Cable
- AC Adapter/Charger
- Power Cord
- User Manual On CD-ROM
- Hard Carrying Case
