Schneider Electric XW+6848 Inverter Charger

Product Description

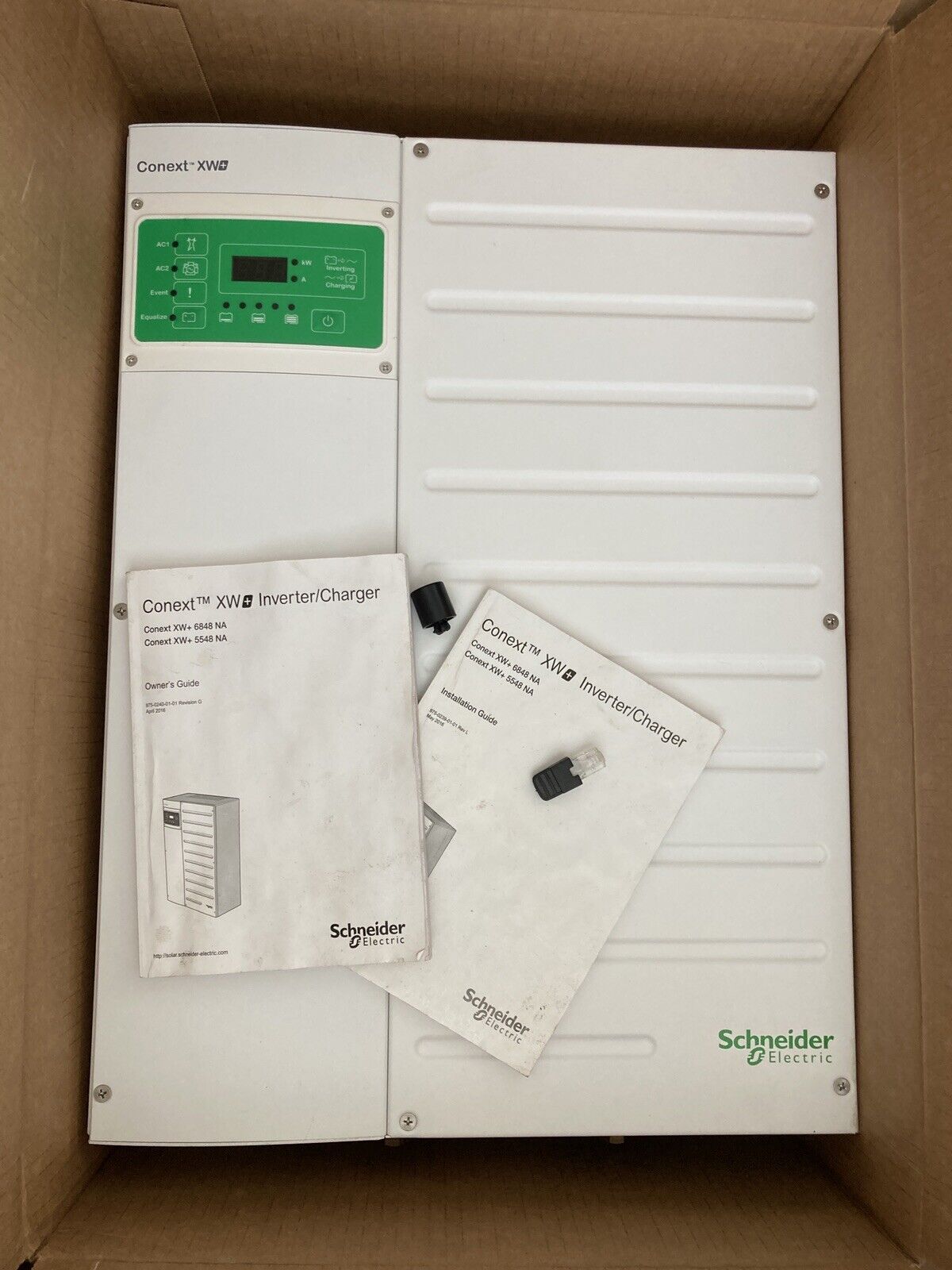

Schneider Electric XW+6848 Inverter Charger

Features

• The Conext XW6848 NA is a hybrid inverter / charger, all in one enclosure
• 48 volt batteries are charged with 120 VAC / 240 VAC split-phase or solar panels with optional MPPT charge controller
• Charging with AC power can be accomplished with a generator or grid-power
• Two AC power inputs
• Scales to 36 kW for commercial or large microgrid installations
• Supports DC coupled and AC coupled solutions
• Supports charging of Lithium Ion battery packs
• Battery temperature sensor is included for temperature compensation
• Wall mount is ideal for wiring purposes
• True sine wave provides clean output for sensitive electronics
• NEMA 1 Enclosure for safety and security. Intended for indoor mounting

ELECTRICAL CHARACTERISTICS:

• Inverter AC Output: XW Pro 6848
• Output power (continuous) at 25 °C 6800 W
• Overload 30 min / 60 sec at 25 °C 8500 W / 12000 W
• Output power (continuous) at 40 °C 6000 W
• Output frequency (selectable) 50 / 60 Hz
• Output voltage 120/240 Vac
• Input DC voltage range 40 to 60 V (48 V Nominal)
• Maximum input DC current 180A
